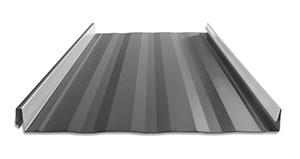

Versa-Span system is a strong, durable, versatile, long length roof panel.

It combines the strength of steel fluted pans and a lock-action rib design. Which together with concealed fasteners, enables installation on low pitched roofs.

Features & Benefits

  • 12? to 18? coverage options available
  • 24 and 22 Tru-Gauge
  • Floating clip system: allows forexpansion/contraction of panels inlonger lengths
  • Concealed fasteners: fasteners cannot leak
  • UL580 Class 90 wind uplift
  • UL Class A Fire & Impact Rated
  • ASTM E-1592-Structural uniform static airpressure:ASTM 1646- Water infiltration:ASTM 2140- Water infiltration:ASTM 1680- Air infiltration
  • Weather tightness warranty available(Contact TMP representative for details)
  • 2:12 minimum pitch recommended: for lowerpitches
  • Standard panel lengths 2' to 65': for longerpanels
  • Onsite roll forming available for long lengths
  • Pan options: Flat pan, Accent ribs, Striations
  • Retro-fit systems available

Material Specifications

  • 26 gauge Kynar 500 Painted Steel.019? (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge bare Zincalume plus with Clear Acrylic Coating-AZ-55
  • 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanizing or AZ-50: Select colors, see data sheet for details
  • 22g Rusteel (Cold Rolled) Rusteel Plus (A606)
  • .032 Kynar 500 Painted Aluminum: Select colors, see data sheet for details
  • 16 and 20 ounce Copper

Finishes

  • 19Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Kynar 500 Paint System-the ultimate in exterior durability and color retention
  • Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)

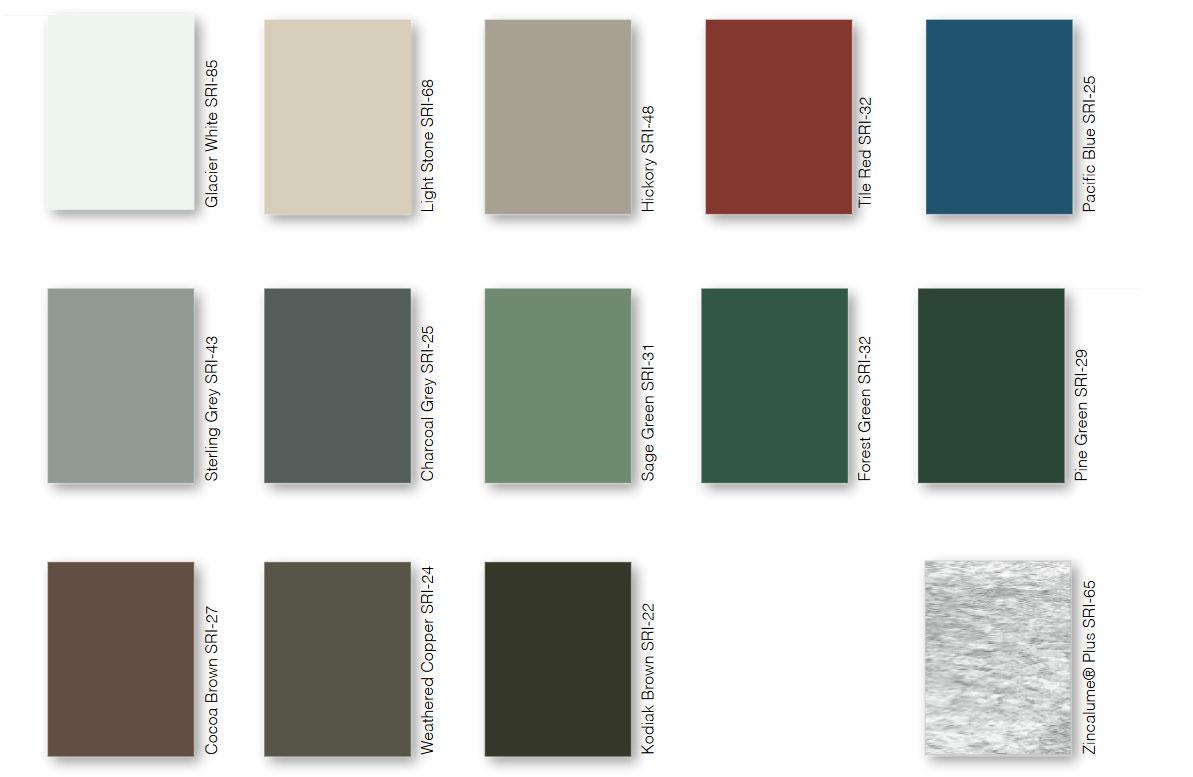

Colors


Standard Cool Armour Tech SMP Colors
