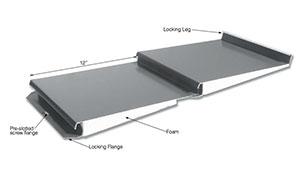

Pacific Pattern panel gives a smooth shingle appearance with 90% fewer seams. This pattern is installed horizontally, beginning at the ridgeline and finishing at eave edge.

Features & Benefits

  • 12" coverag
  • 24 Tru-Gauge (11-7/8? actual coverage)
  • Factory applied foam backer makes for a quiet and walkable panel
  • Standard panel lengths 2' to 50': (for longerpanels, please inquire)
  • Custom flashing for all conditions available
  • 1" vertical heigh
  • Concealed fasteners: fasteners cannot leak
  • UL Class A fire rated
  • 4:12 minimum pitch recommended: (for lower pitches please inquire)

Material Specifications

  • 26 gauge Kynar 500 Painted Steel.019? (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge bare Zincalume plus with Clear Acrylic Coating-AZ-55
  • 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanizing or AZ-50: Select colors, see data sheet for details
  • .032 Kynar 500 Painted Aluminum: Select colors, see data sheet for details
  • 16 and 20 ounce Copper


  • 11 Standard Colors, 1 Metallic Color and 3 Specialized Colors
  • Kynar 500 Paint System-the ultimate in exterior durability and color retention
  • Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)


Standard Cool Kynar 500 Colors

Metallic Cool Kynar 500 & Specialized Materials
