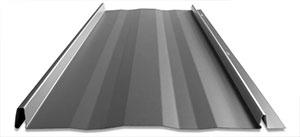

The Easy-Lock Standing Seam is the only metal roofing panel with a patented no-siphon dry lock seam, with a unique reversing feature to allow installation of panels from both directions starting at any location. The panel is designed with softer, less industrial lines to provide a more architecturally pleasing appearance.

Features & Benefits

  • 12", 16" and 18" coverage options
  • 26, 24 and 22 gauge Tru-Gauge
  • Factory-notched panels available
  • Vertical interlocking application: allowsinstallation from both directions starting at any location
  • Patented no-siphon lock seam
  • 1-1/8? vertical rib with flat top for ease of flashingattachment
  • Concealed fasteners: fasteners cannot leak
  • Pre-slotted fastener flange: allowsexpansion/contraction of panel
  • UL580 Class 90 wind uplift
  • UL Class A Fire & Impact Rated
  • 3:12 minimum pitch recommended: for lowerpitches please inquire
  • Standard panel lengths 2' to 35': for longerpanels, please inquire
  • Pan options: Flat pan, Accent ribs, Striations

Material Specifications

  • 26 gauge Kynar 500 Painted Steel.019? (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge bare Zincalume plus with Clear Acrylic Coating-AZ-55
  • 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanizing or AZ-50: Select colors, see data sheet for details
  • .032 Kynar 500 Painted Aluminum: Select colors, see data sheet for details
  • 16 and 20 ounce Copper

Finishes

  • 20 Standard Colors, 5 Metallic Colors and 5 Specialized Colors
  • Kynar 500 Paint System-the ultimate in exterior durabiity and color retention
  • Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)

Colors


Standard 24g Cool Kynar 500 Colors


Metallic Cool Kynar 500 & Specialized Materials
